CSA certified 40ft crypto mining container

Tianqi 40 feet mining container, CSA certification for the entire container, can be put up to 315 mining machines, the actual can install 380 mining machines, the switch capacity standard reached 1611A, the actual can carry 2000A.

Stock: 100 units

Get a Quote

Product Details

Product Tags

Spot sale!! The lowest price in the world! !72 hours delivery!!

CSA CERTIFICATION 40FT MINING CONTAINERS

Tianqi 40 feet mining container, the whole box including the internal electrical components all obtained CSA certification, can be put up to 315 mining machines, the actual can install 380 mining machines, the switch capacity standard reached 1611A, the actual can carry 2000A. plug and play, and use a one socket one switch PDU, due to the excellent production capacity, Apocalypse has sufficient stock supply, the fastest 72 hours can be shipped, greatly reducing your time costs.

TIANQI Mining Containers Features

CSA full containers certification

TIANQI 40ft mining containers and distribution cabinet, PDU, power cord and other electrical accessories are all CSA certified, and you can purchase insurance to protect your mining assets.

Large capacity machine setting

Wirelessized box layout

TIANQI containers wireless layout processing, no bare leakage of electrical wiring inside the box, neat and beautiful, and easy to maintain.

Available in stock

TIANQI's strong production capacity guarantees assembly and dispatch within 72 hours after the cooperation is reached, helping you to reduce the cost of waiting time by at least 50%.

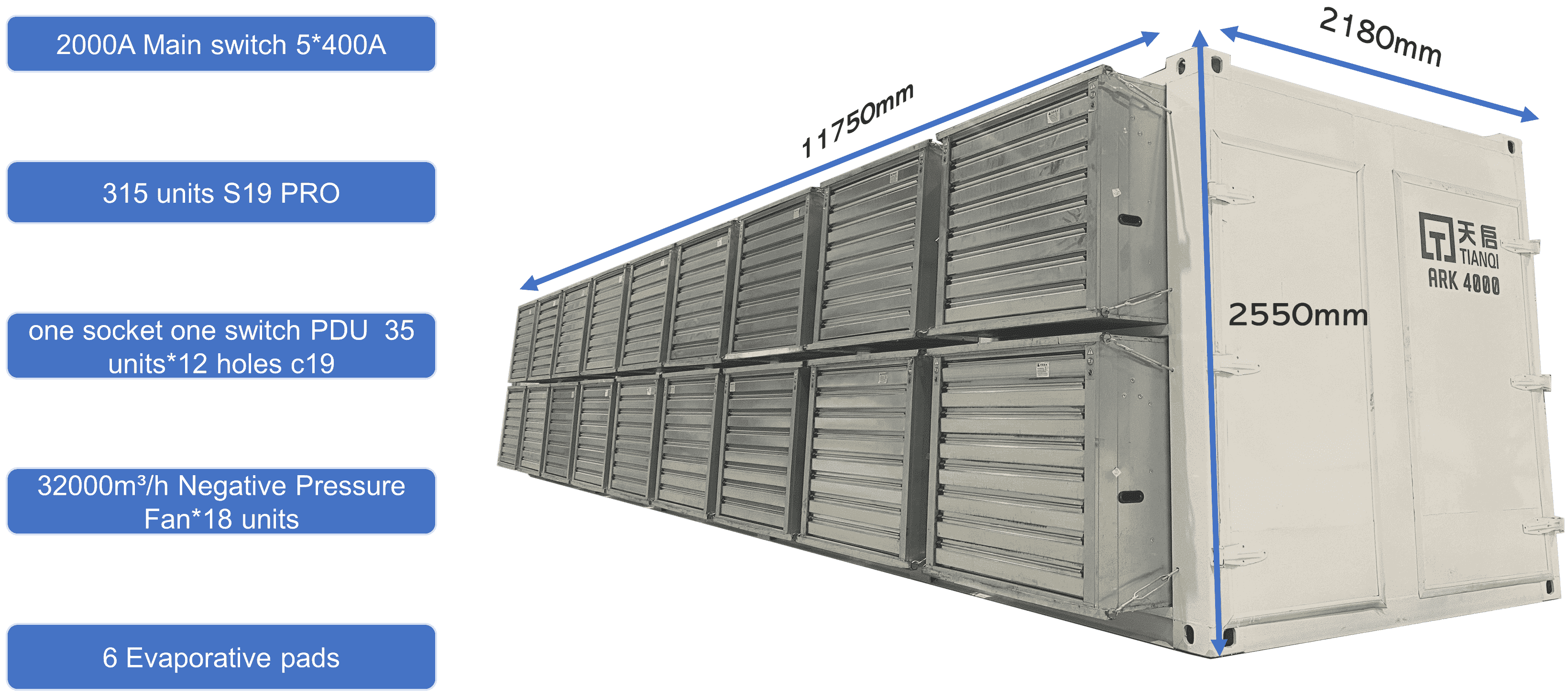

Specific Parameters Of Our Mining Containers

The values in the table below are the CSA certified values. The certified values are lower than the actual values because the CSA has set the security values.

		TIANQI-40FT	TIANQI-20FT
Basic Info	External Dimensions	1175021802550	1175021802550
	Internal Dimensions	1165021702240	581021702240
	Miner capacity	315 units S19 pro	189 units S19 pro
	Color	Customized	Customized
	Cooling Method	Fans, Evaporative pads	Fans, Evaporative pads

Electricity Demand	Total Current	1611A	950A
	Rated current	1611A	950A
	input voltages	380-415 AC 60Hz	380V~415V AC 60HZ

Product Details

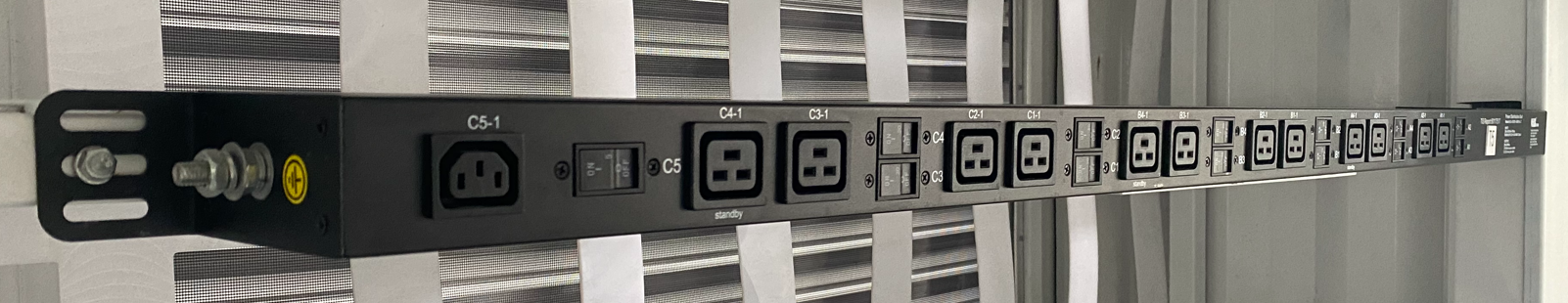

1.PDU (Power Distribution Unit)

TIANQI uses CSA certified American custom-made PDUs designed and manufactured according to North American electrical standards. The number of PDUs in a 40ft mining containers is 35, and one PDU socket is 16A/13 holes,The total number of sockets is 455。

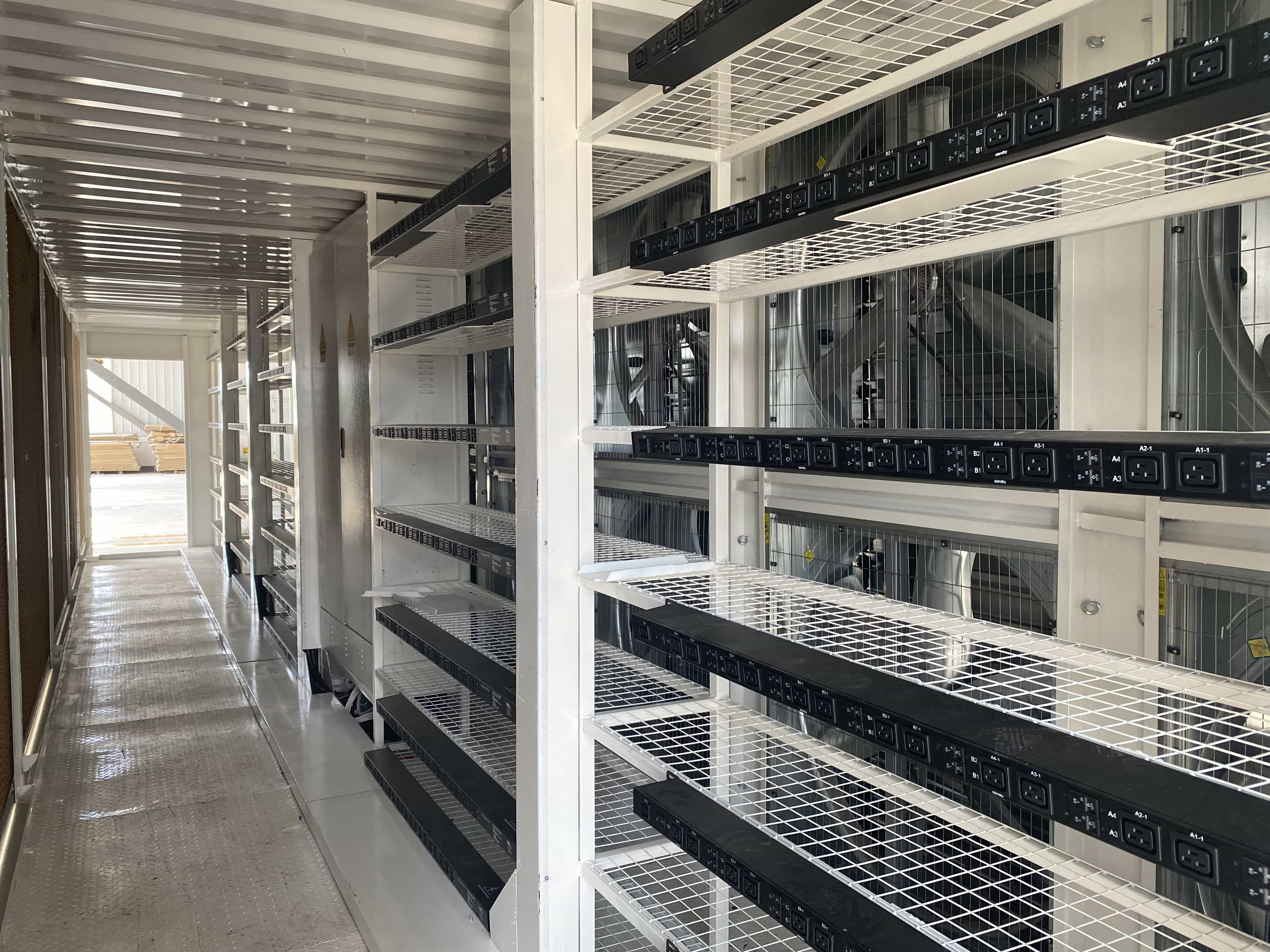

2.Shelf

The number of layers and width of the mining rack can be customized according to the customer's mining machine size and appearance requirements.The length of the 40ft rack is 5700mm, the width is 420mm, and the single layer can bear at least 300KG.At present, the default number of rack layers is 7, and the spacing between each layer is 310mm.The frame is made of high-quality square tubes welded with high load-bearing capacity.

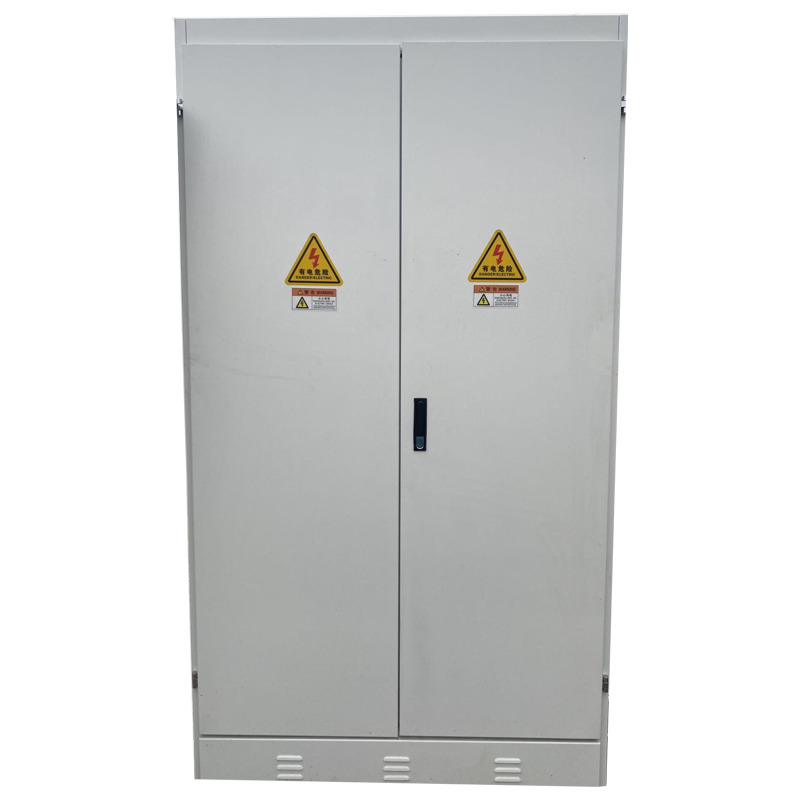

3.Distribution Cabinet

Main switch of Industrial Control Panel：40ft-2000A

Rated current：40ft-1800A

input ：380V~415V AC 50/60HZ

Power distribution cabinet consists of five 400A large molded case circuit breakers, 35 small circuit breakers, and 18 negative pressure fan switches

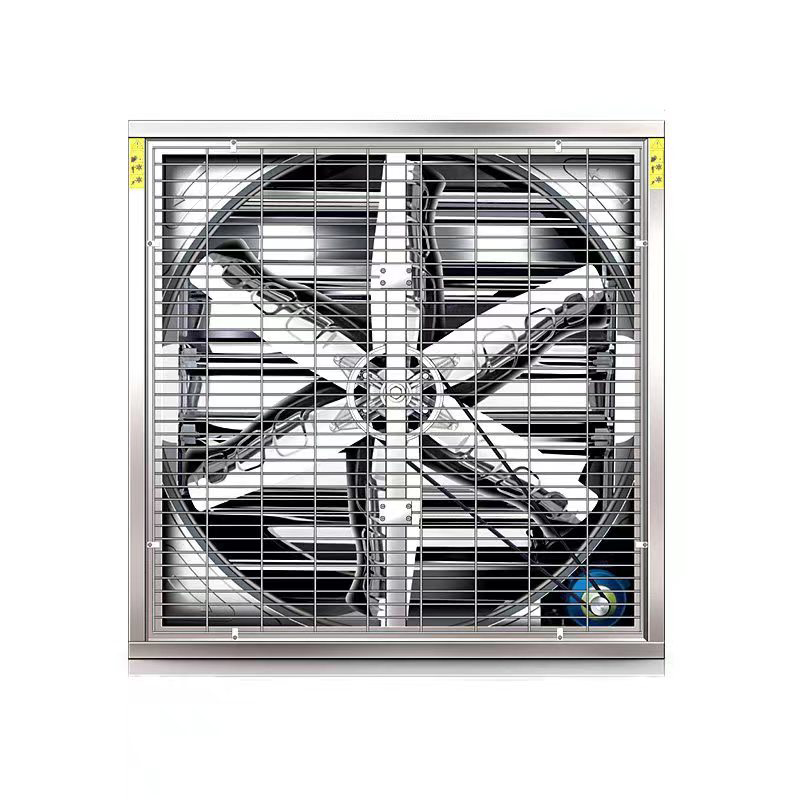

4.Negative pressure fan

The 40ft mining container is equipped with 18 sets of 32000CMF negative pressure fans and 6 water curtains of 2160 long and 1655 wide to keep the asic miner running even in the heat of the USA.
